2007 Diamond DA40 XL

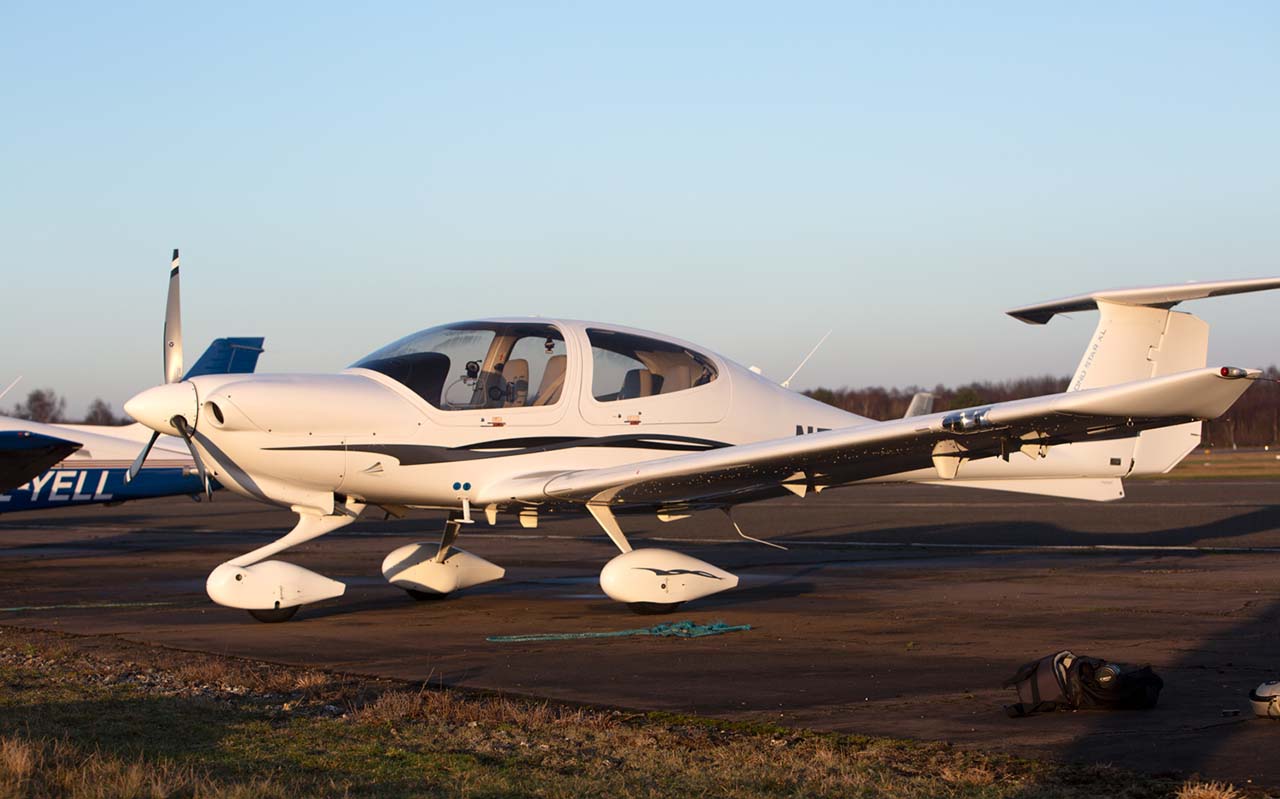

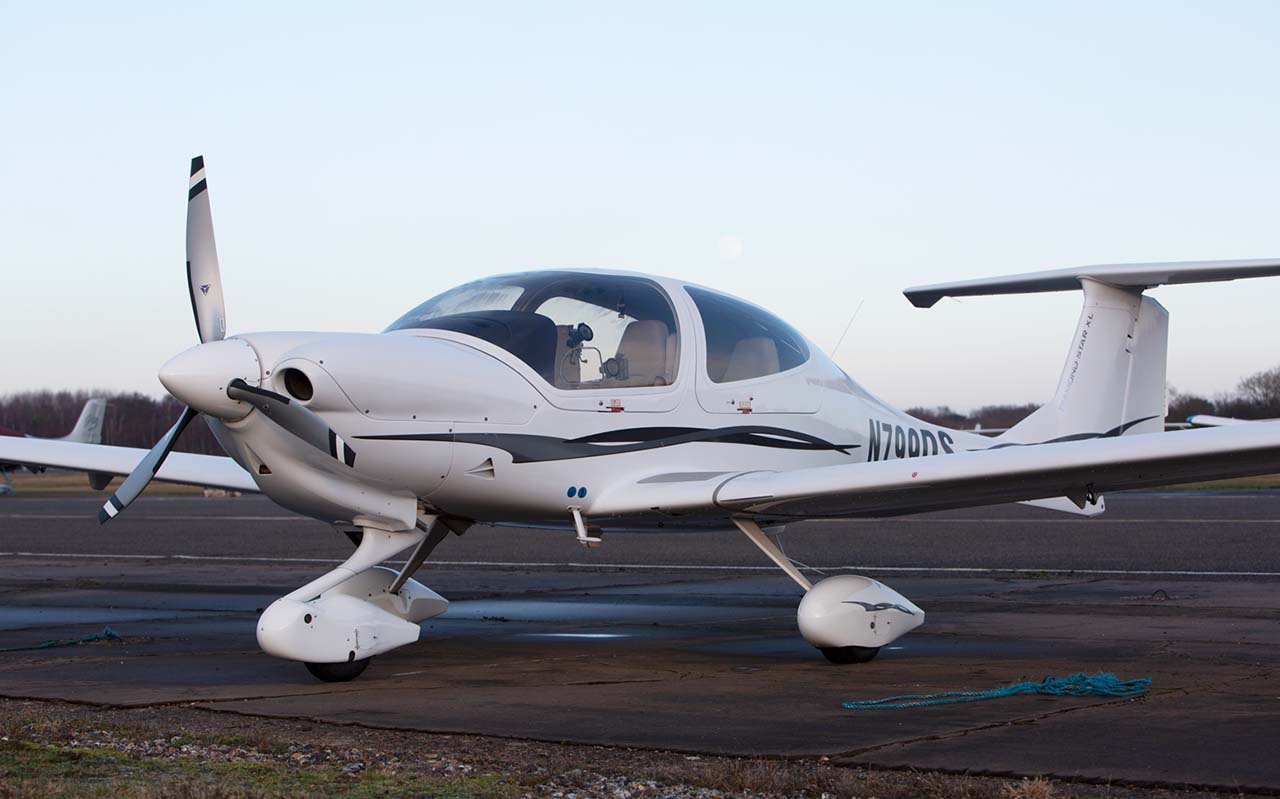

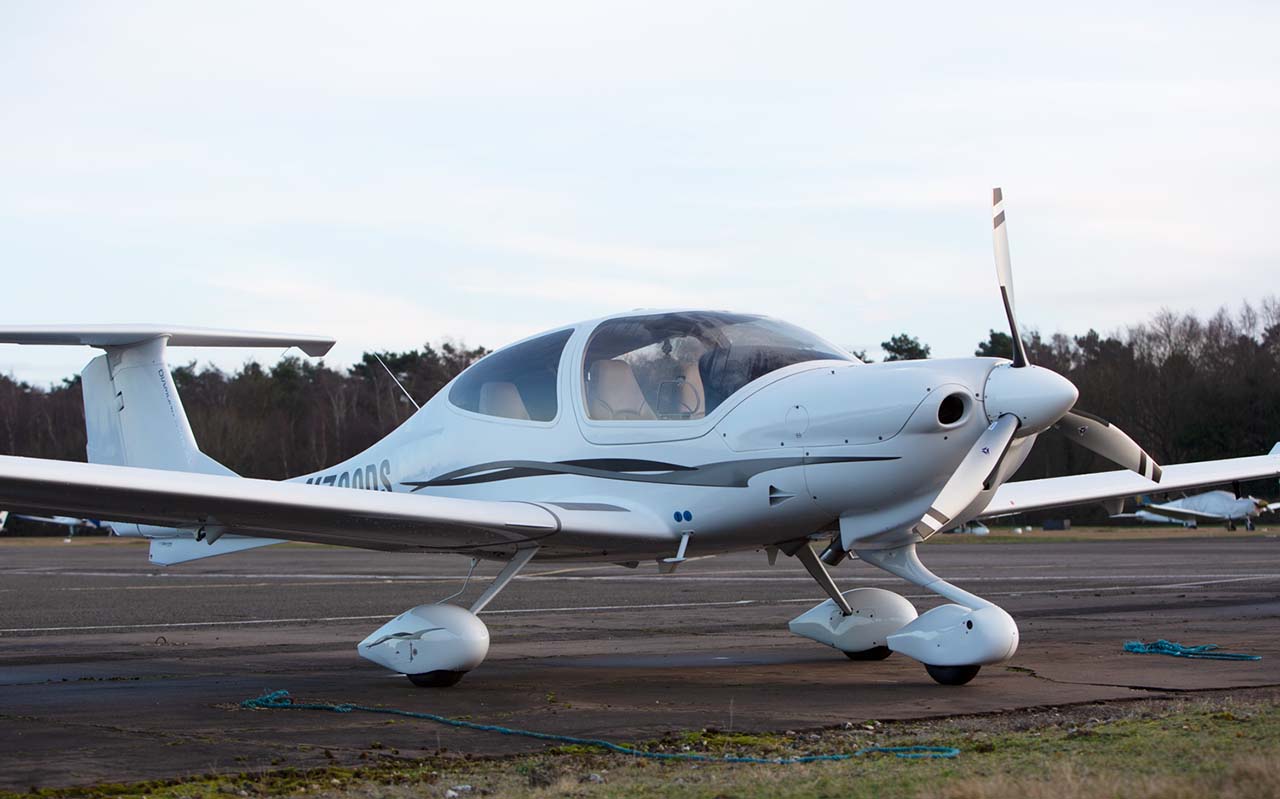

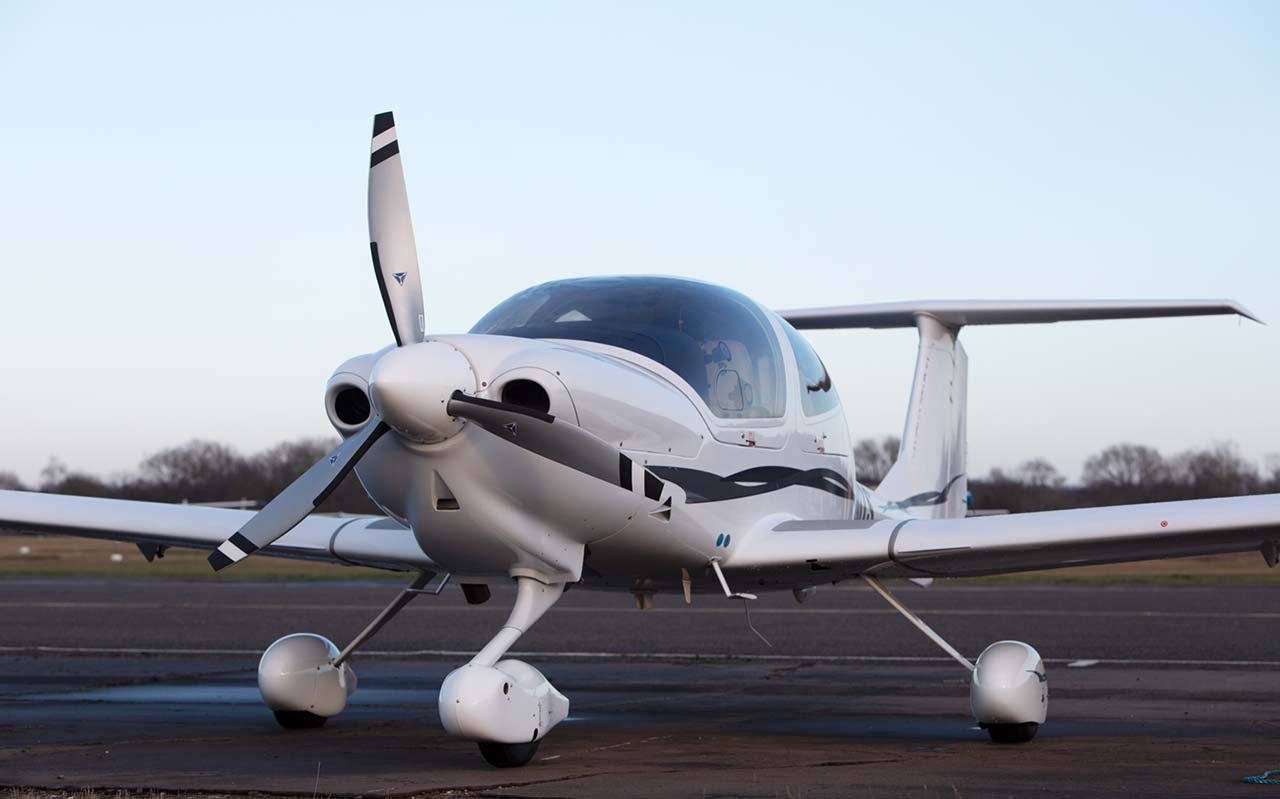

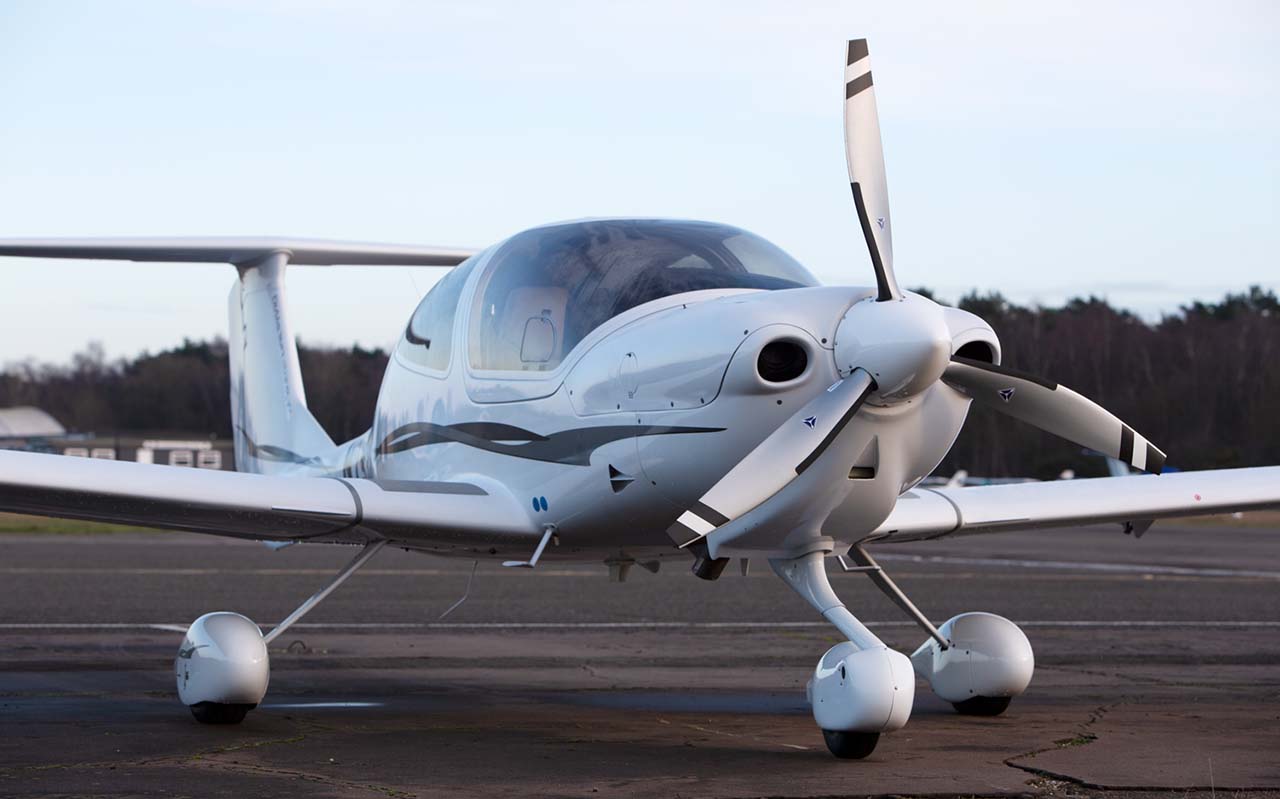

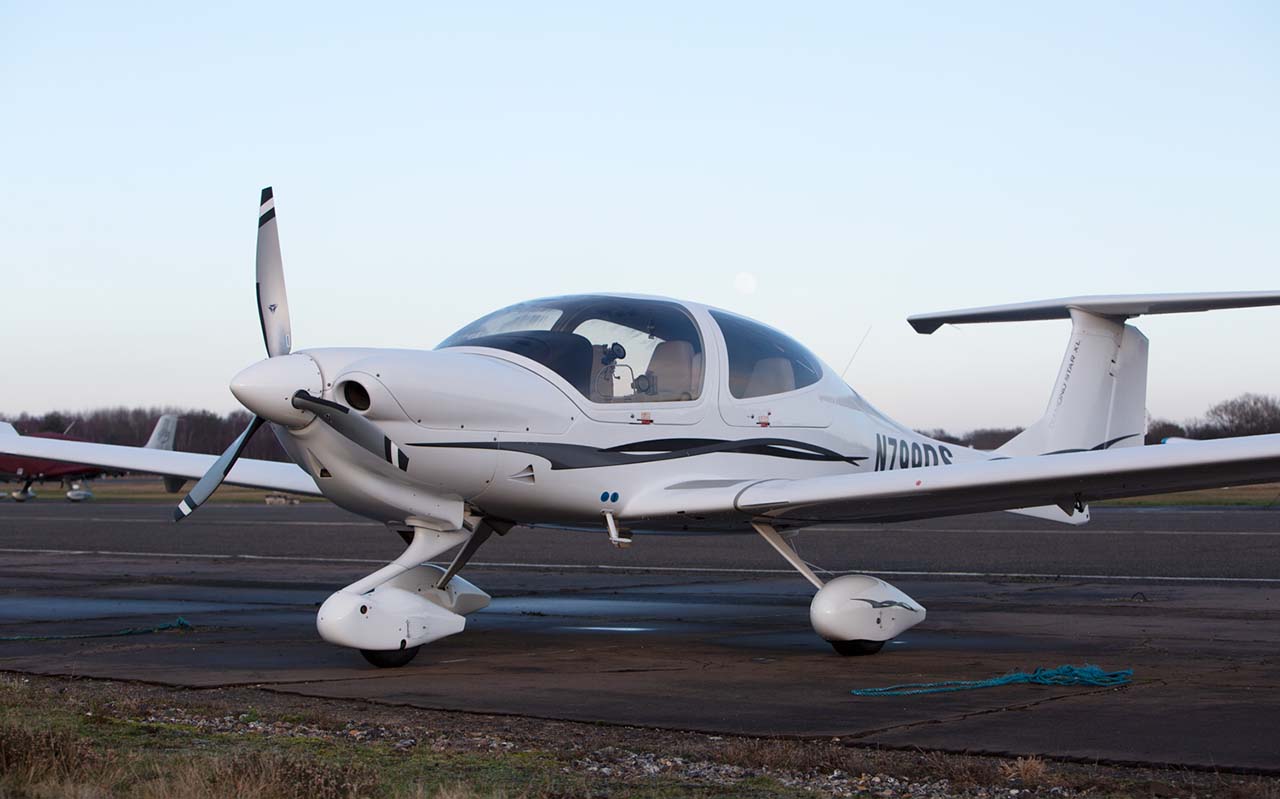

2007 Diamond DA40 XL — Imported from the US in 2013. A low hour DA40 with Garmin 1000 avionics, 10 inch screens and GFC700 autopilot. 855 hours from new with only two private owners and has never been used for flight training. VAT paid and in free circulation within the UK and EU. Last annual inspection completed in December 2021. No damage history. Lovely condition and ready to go for a new owner. Only selling due to upgrade. £285,000 VAT PAID or near offer. Aircraft currently based in Blackbushe EGLK.
The Aircraft In Detail
Premium Champagne Leather Interior. Amsafe Airbag Seatbelts. White Exterior with Accent Striping.
Features 12v Auxiliary Power Plug. Canopy Cover. Annual inspection will be valid until December 2023.
Key Details
| YEAR OF MANUFACTURE | 2007 | FEATURES | Premium Champagne Leather Interior |
| SERIAL NUMBER | 40.799 | Amsafe Airbag Seatbelts | |
| TOTAL TIME ON AIRFRAME | 855 HRS | White Exterior with Accent Striping | |

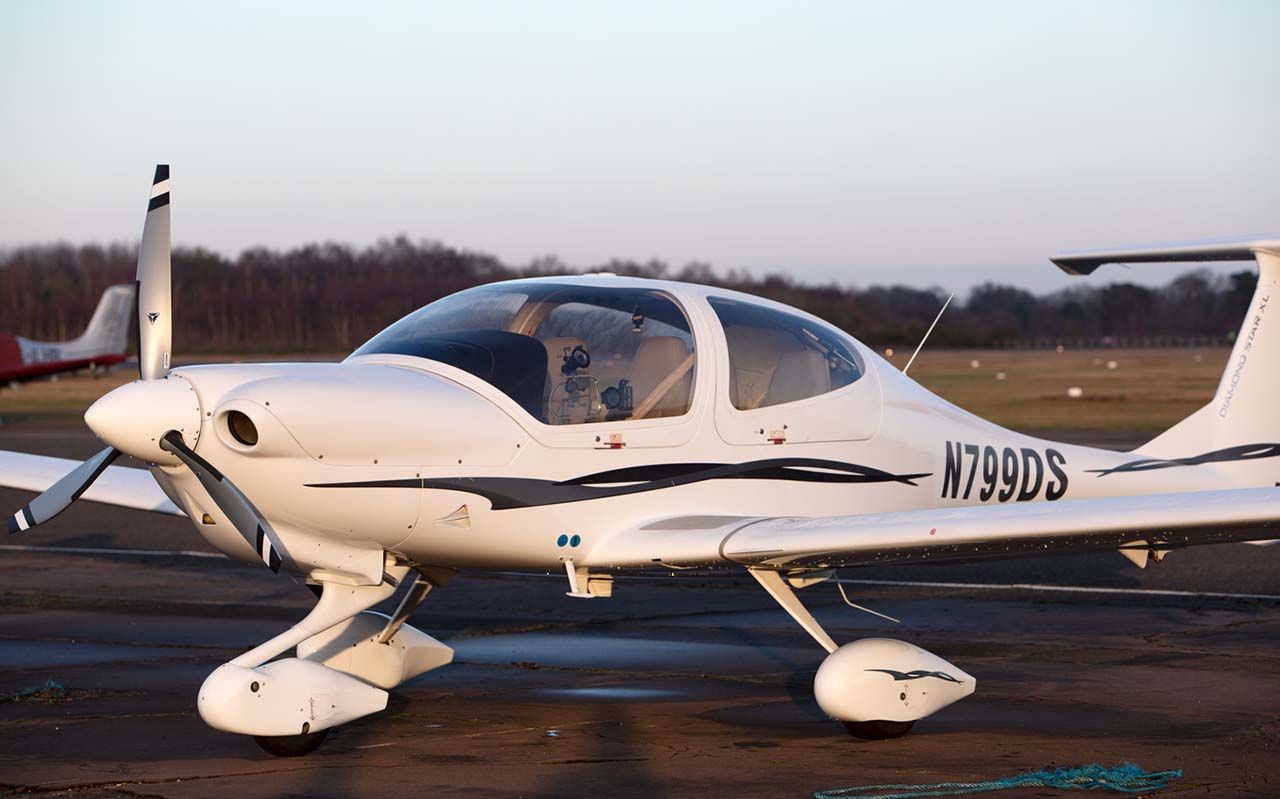

| REGISTRATION | N799DS | 12v Auxiliary Power Plug | |
| LOCATION | UNITED KINGDOM | Canopy Cover |
Avionics

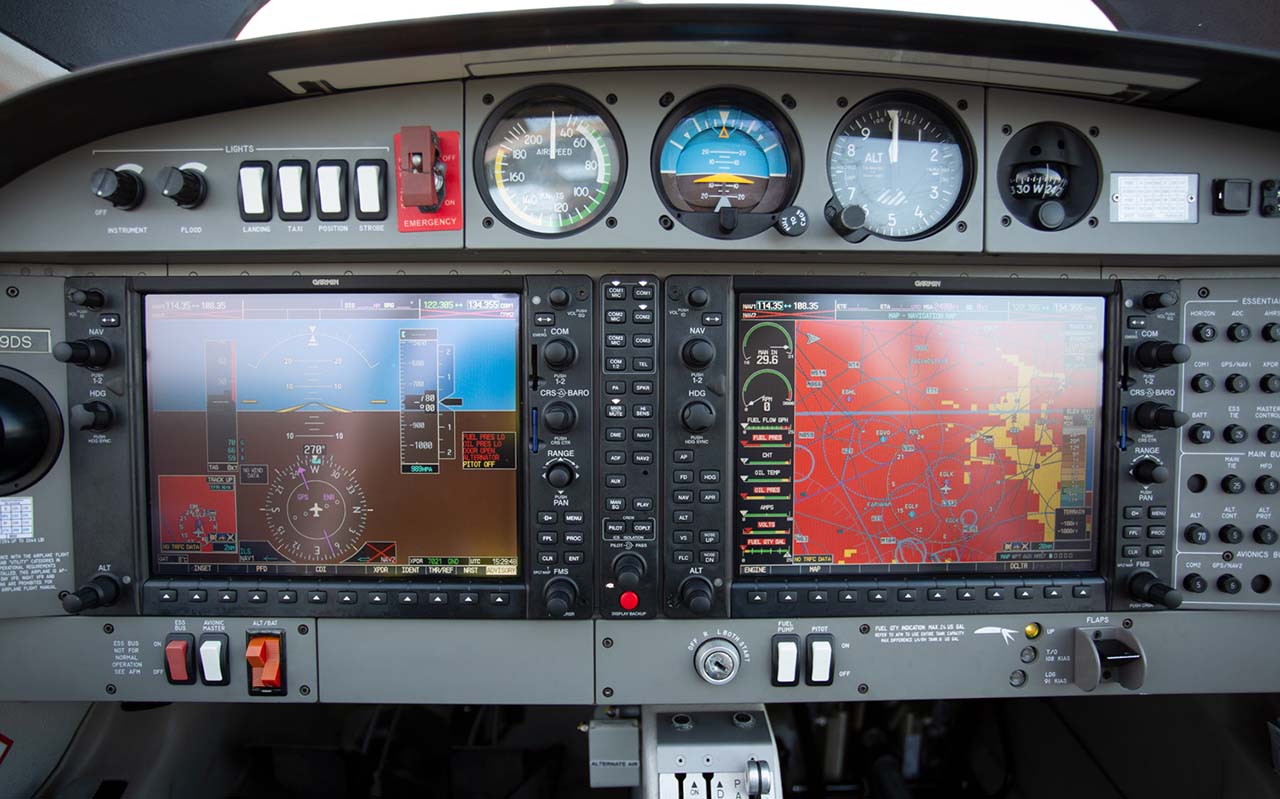

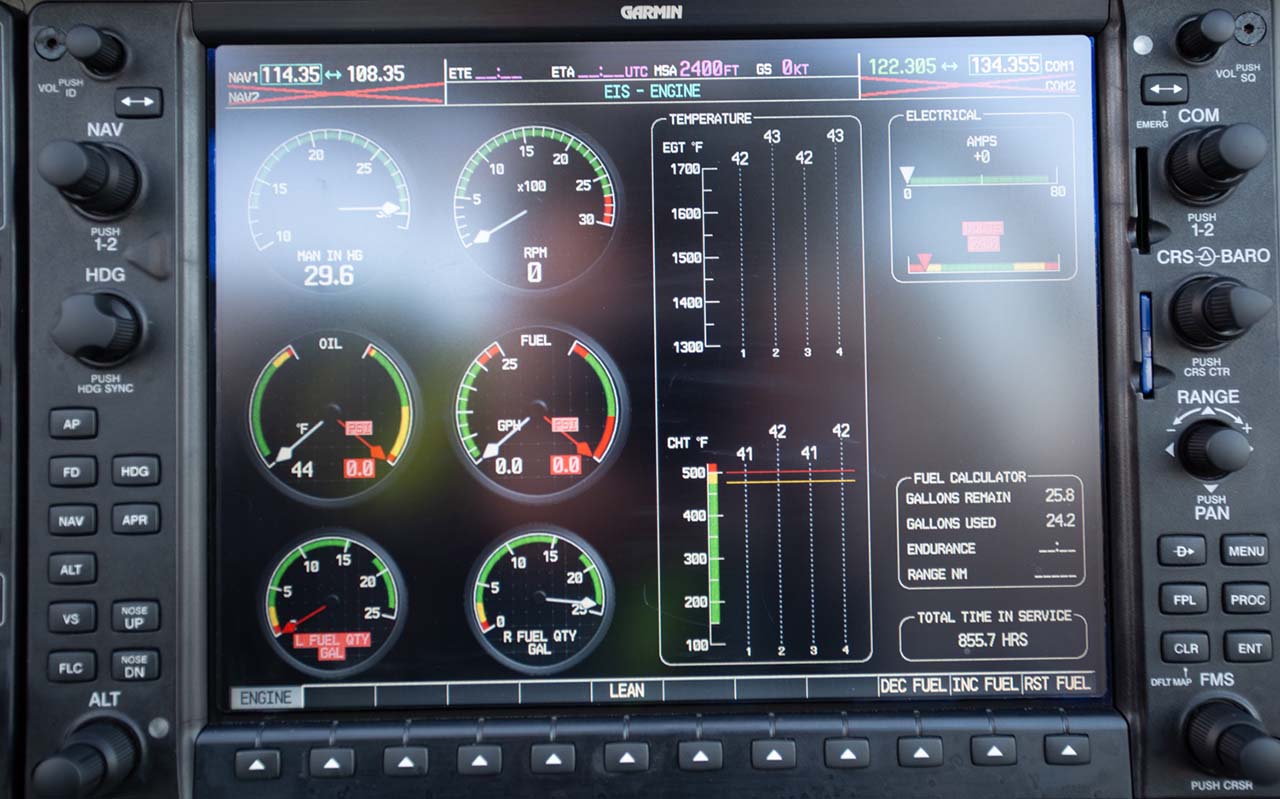

Garmin G1000 System With Gdu 1040 10” Pfd & Mfd Moving Map Display

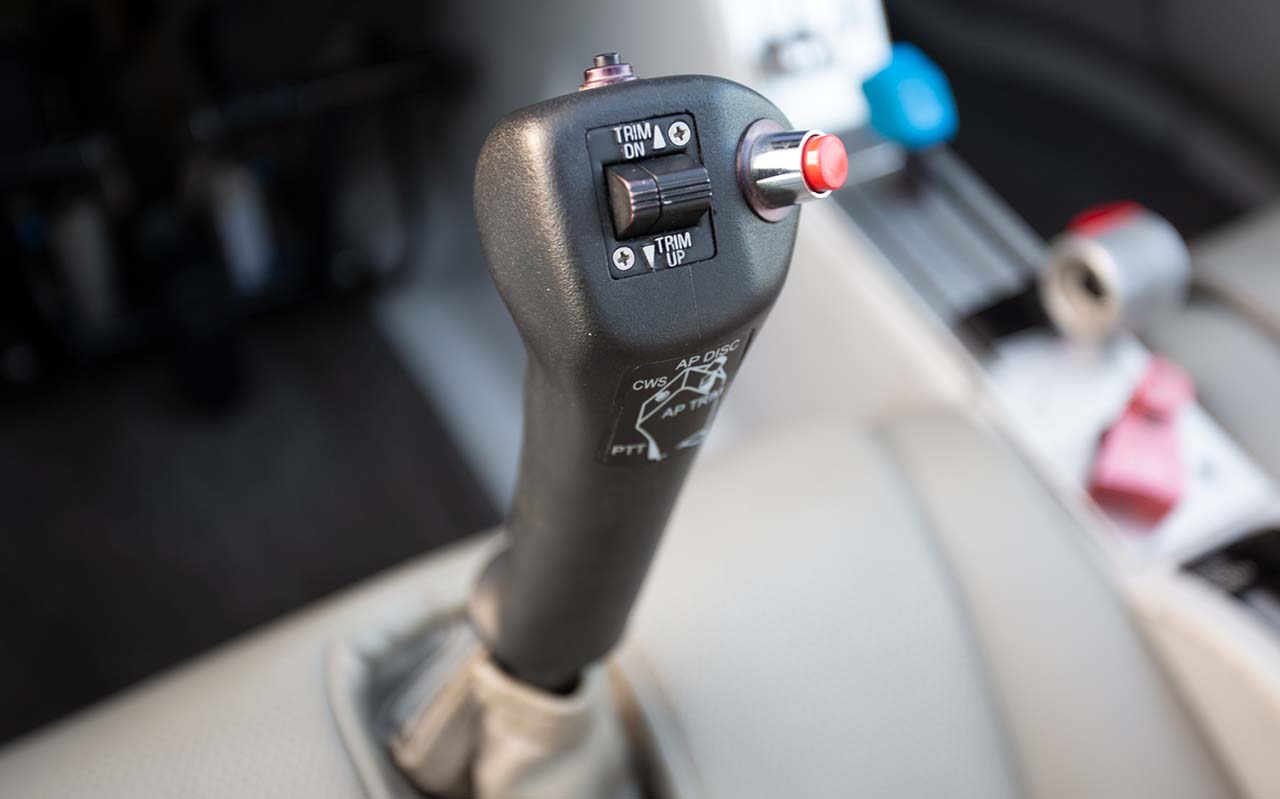

Garmin Gfc700 Automatic Flight Control System (Afcs) Including 2 Axis Digital Autopilot With Flight Director
Aws-B Terrain Awareness
Avidyne Tas 600 Active Traffic
Garmin 4 Place Built In Intercom
Garmin Gdl69a Satellite Data Link
Flight Planning
Safetaxi & Airport Data
Efis Electronic Engine And Fuel Monitoring
Gea 71 Airframe/Engine Interface Unit
Electronic Flite Charts
Gtx 33 Mode S Transponder
2 X Garmin Integrated Radio Modules With Ifr Approved Gps; Vhf Navigation With Ils; And Vhf Communication With 16-Watt Transceivers ; Gma 1347 Digital Audio Controller With Atc Playback
Engine & Propeller
Lycoming Io-360-M1a+ 180 Bhp 855 Hours Since New.
Mt 3 Blade Composite Variable Pitch Propeller 75 Hours Since Overhaul In December 2019.

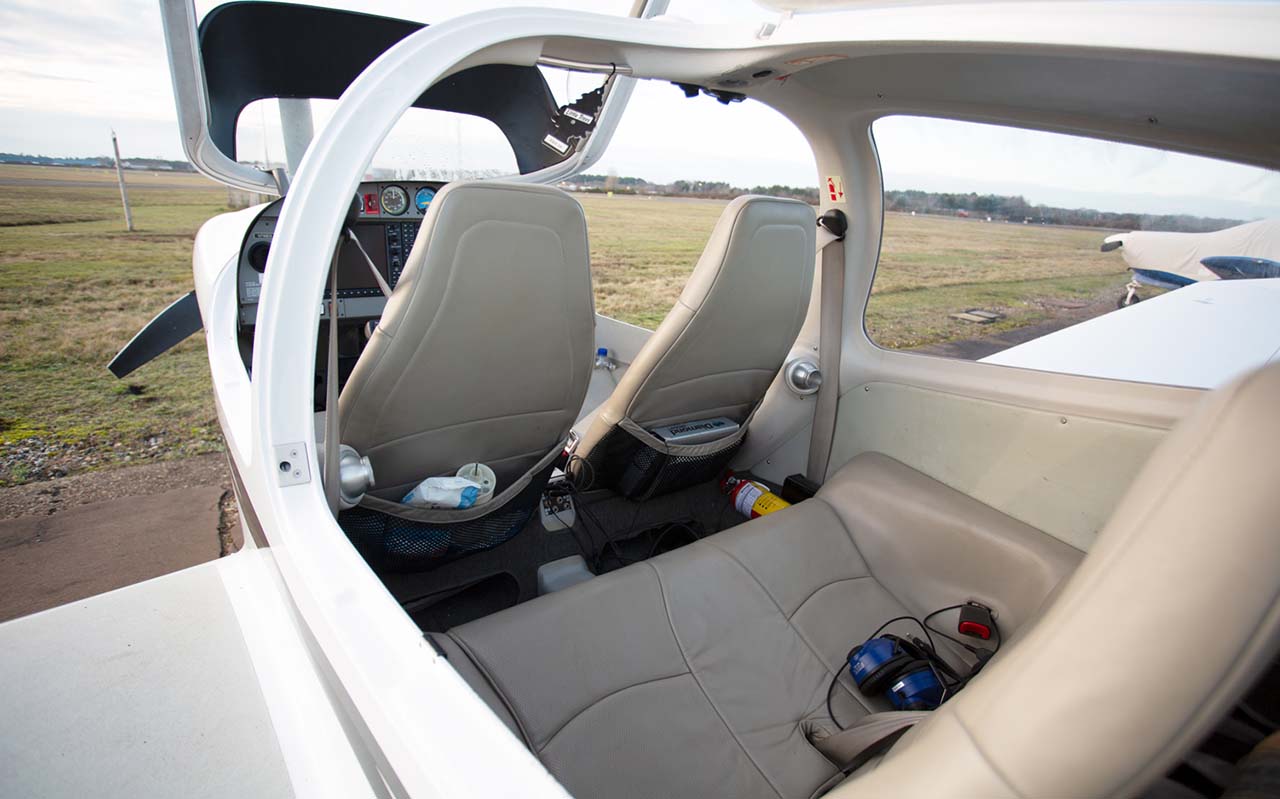

Interior
Premium Champagne Leather Interior
Amsafe Airbag Seatbelts
Exterior
White with Accent Striping
Additional Equipment
12v Auxiliary Power Plug
Electrically Adjustable Rudder Pedals
Electronic Carbon Monoxide Detector
High Intensity Discharge Landing And Taxi Lights
Powerflow Tuned Exhaust
Mt 3-Blade Composite Constant Speed Propeller With Scimitar Blades
Winter Kit

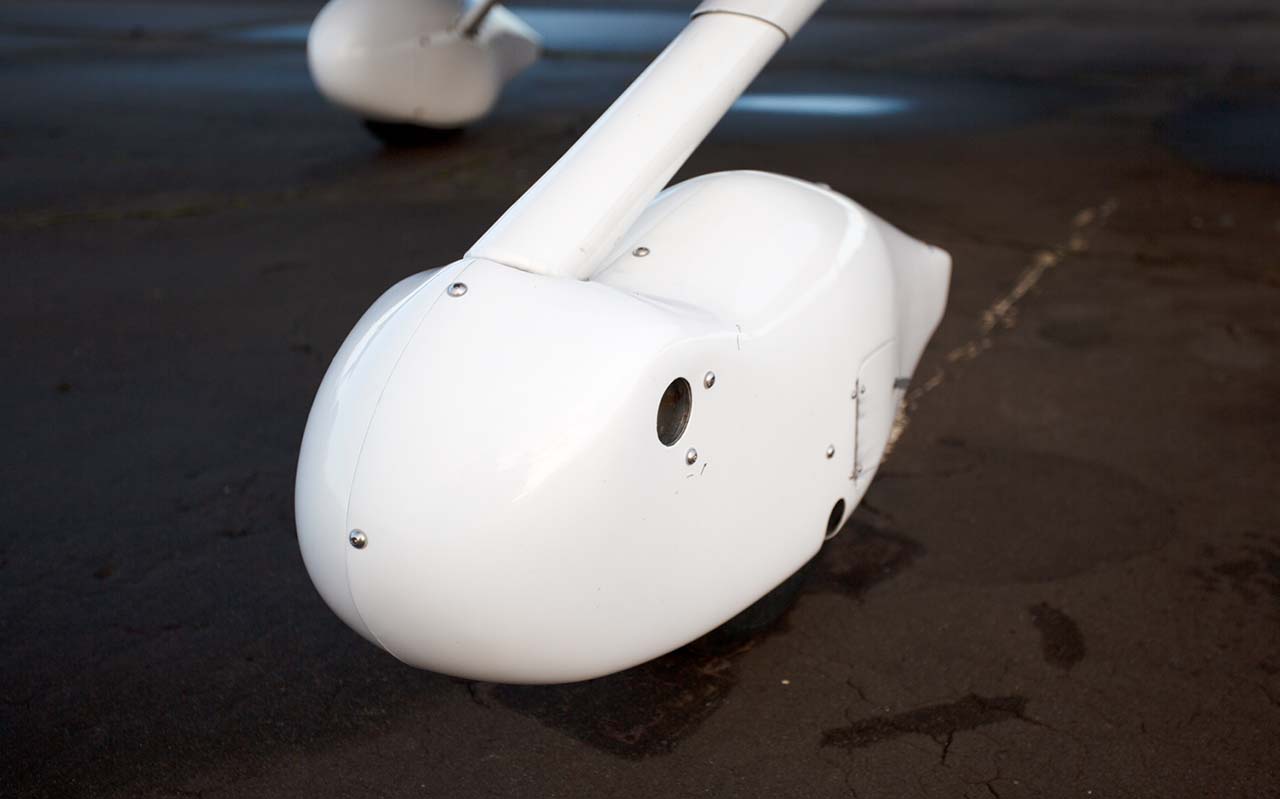

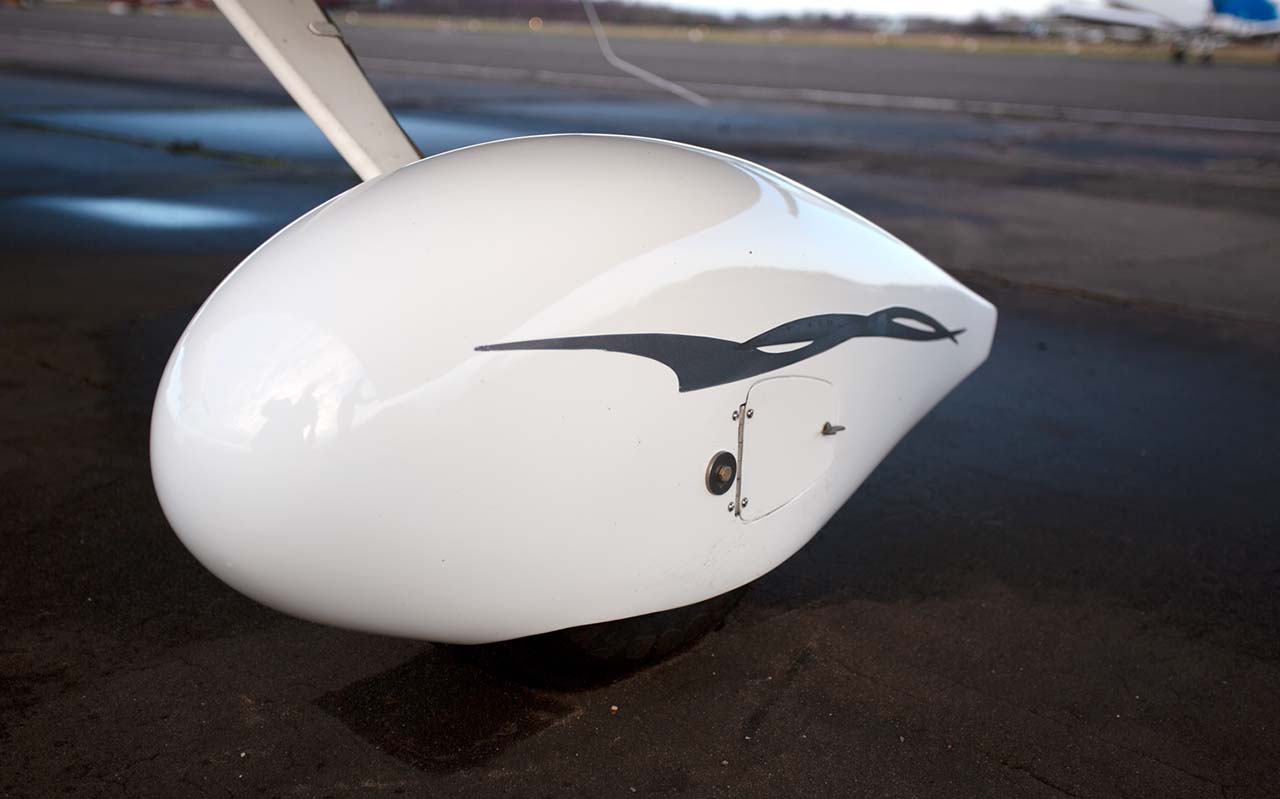

Performance Landing Gear Kit ( 15 – 6.00 – 6 Main Gear Tyres, Stream-Lined Wheel Fairings)
Extended Range Fuel Tanks (50usg)
4 Way Baggage Compartment
Amsafe Airbag Seatbelts
Cockpit Convenience Package (Rudder Cable Covers, High Capacity Rigid Side Pockets With Integral Cup Holders)
Armrests
Canopy Cover
Gross Weight Increase
Additional Maintainance Information
Annual Inspection Valid Until December 2023
Propeller Overhauled By Brinkleys December 2020
Engine Compressions: #1=76/80 #2=78/80 #3=77/80 #4=78/80
Magnetos Overhauled At 708 Hours In Nov 2019
Pitot/Static And Transponder Tests Valid Until December 2023
Weights & Performance
Gross Weight 2646lbs
Empty Weight 1821lbs
Useful Load 825lbs
Useful Load With Full Fuel 525 Lbs
Cruise Speed 145kts Tas At 8-9 Gph Fl090
Range At This Power Setting 780nm
Take Off Distance 1027ft
Ceiling 16,400ft
Fuel Consumption 9 Gph
Note: Specification is correct to the best of our knowledge. It is the buyer’s responsibility to check the actual specification prior to purchase. No warranties are sold or implied.
